01
No brush. No sparking.
No carbon-brush contact — so no spark, no brush dust, and a safer cabinet.
Platform 01 · 605 Brushless
Brushless pump.Safe boost.
No carbon brushes, no spark. Flow is adjustable on the driver, and outlet pressure holds steady under load — a safer boost for RO and commercial chassis.
Flow
2.5–7.5 L/min (at 100 psi)
Voltage
AC 115 V / 230 V
Power
≤ 120 W
Outlet
Max 150 psi
Why this platform
Safer boost. Longer life. Pressure you can set.
No carbon brushes means no spark in the cabinet. Motor life is no longer capped by brush wear. Flow and pressure stay under driver control, so one platform covers more duty points.
02
Long lifetime.
Carbon brushes wear out and end motor life. A brushless field has nothing to grind away, so service life rises sharply.
03
High flow.
High delivery, with flow trimmed from the driver — 2.5–7.5 L/min at 100 psi.
04
High pressure & suction.
Strong boost and self-prime. High outlet pressure and suction for RO, dispensers and commercial loops.
Applications
Built for water delivery and boosting, e.g.
Commercial & residential RO
Stable, spark-free boost for under-sink and light-commercial reverse-osmosis systems.
Ice makers
R600 refrigerant is flammable. No carbon brushes, no spark — a brushless pump that can be used safely in ice-machine water circuits.
Sparkling water systems
Quiet, adjustable flow for soda makers and sparkling-water dispensers.
RVs and yachts
Compact boost and self-prime for onboard fresh-water systems.
Garden & home boost
Hose watering and household pressure when the mains fall short.
Inside the motor
A rotating field, not a commutator.
Segmented windings become a ring stator, then a BMC shell. The rotor follows the field. There is no brush to arc, wear, or contaminate the cabinet.

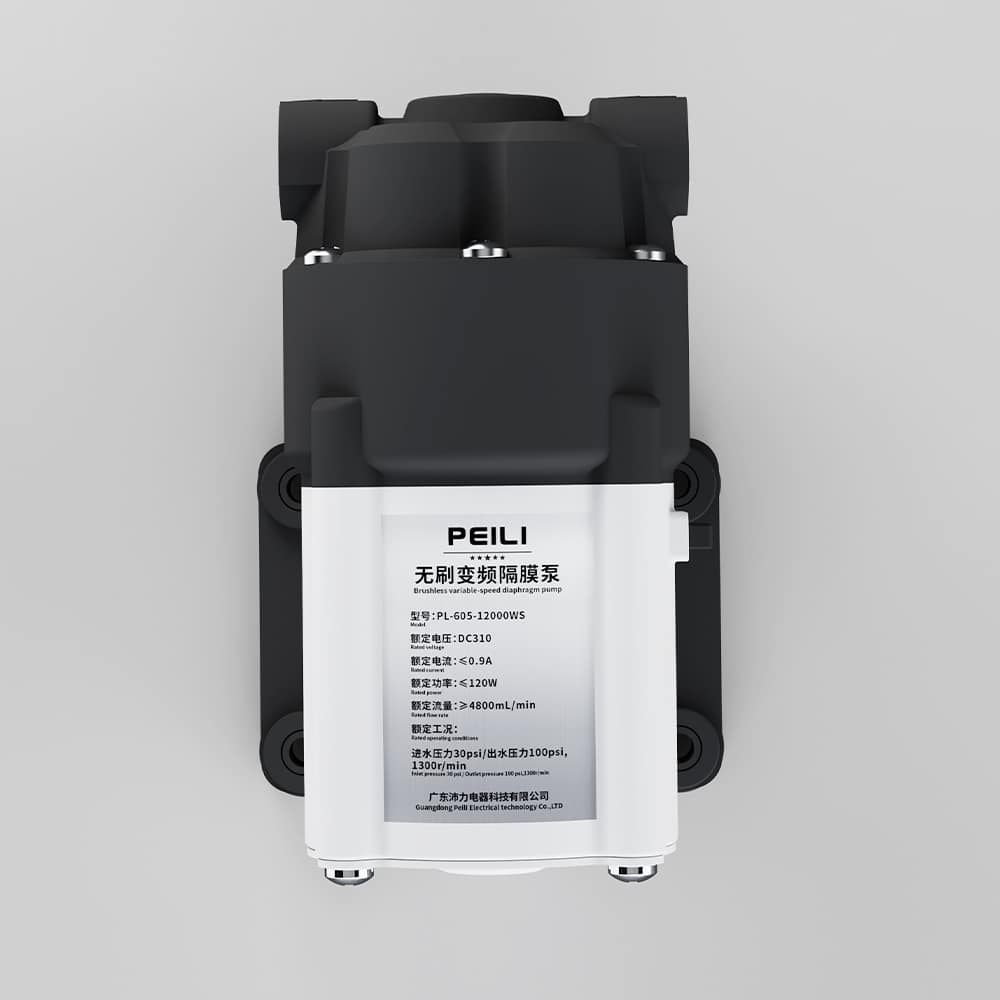

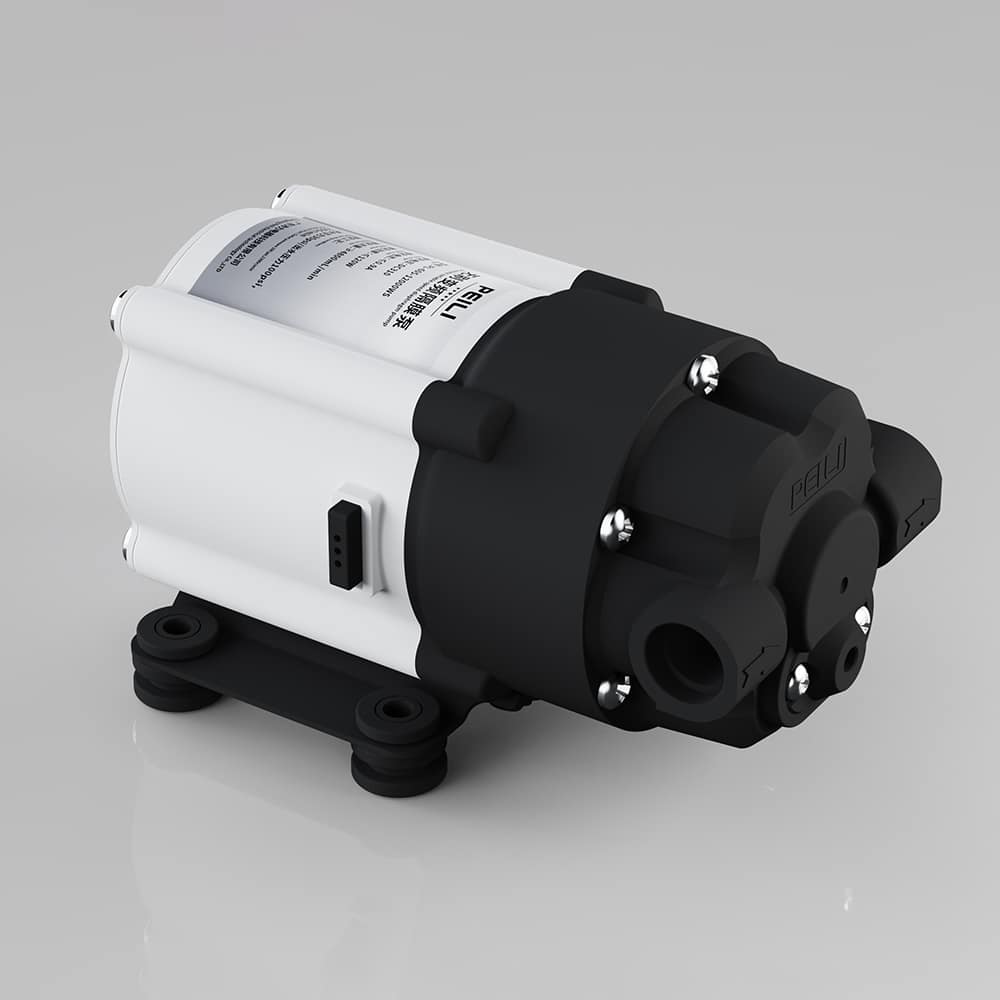

PL-605-1200WS
Brushless variable-speed diaphragm pump
Flagship 605 brushless booster for residential large-flux and light-commercial RO. AC 115 V / 230 V, ≥ 4.8 L/min at the rated point, outlet max 150 psi. Speed, flow and pressure are adjustable from the driver.
- Brushless motor — no carbon brushes, no spark
- Speed, flow and pressure adjustable from the driver
- BMC-encapsulated stator for insulation, sealing and heat
- Magnetic isolation sleeve, leak-free to IP68 at the motor
- Shared 605 pump head for an easier drop-in on existing layouts
Flow
≥ 4.8 L/min
Voltage
AC 115 V / 230 V
Power
≤ 120 W
Outlet
Max 150 psi
Manufacturing
From stator winding to a finished 605 pump — on one line.
Jiangmen winds the segmented stator, forms the ring and overmolds it in BMC, then mates the motor to the 605 diaphragm head. Incoming inspection, in-process checks and nine outgoing benches — leak, flow, pressure, load and noise — qualify every unit on the same campus that already supplies first-line purification OEMs.
01
Winding
Segmented stator coils are wound in-house on automatic machines to a controlled turn count — consistent resistance, inductance and thermal margin from lot to lot.
02
Circular forming
Individual segments are indexed, spliced into a closed ring, inspected, then pressed into a stator core ready for encapsulation.
03
BMC overmolding
Bulk Molding Compound encapsulates the ring stator in a single thermoset shot — dielectric strength, rigidity, heat path and sealed cosmetics in one cycle.
04
Pump assembly
The finished motor is mated to the 605 diaphragm head, valves and ports. The complete pump is leak-checked and run to its rated point before packing.
Air tightnessMechanical propertiesFlame retardanceFlow performanceNoisePressureLoadHot / coldMaterial reliability
